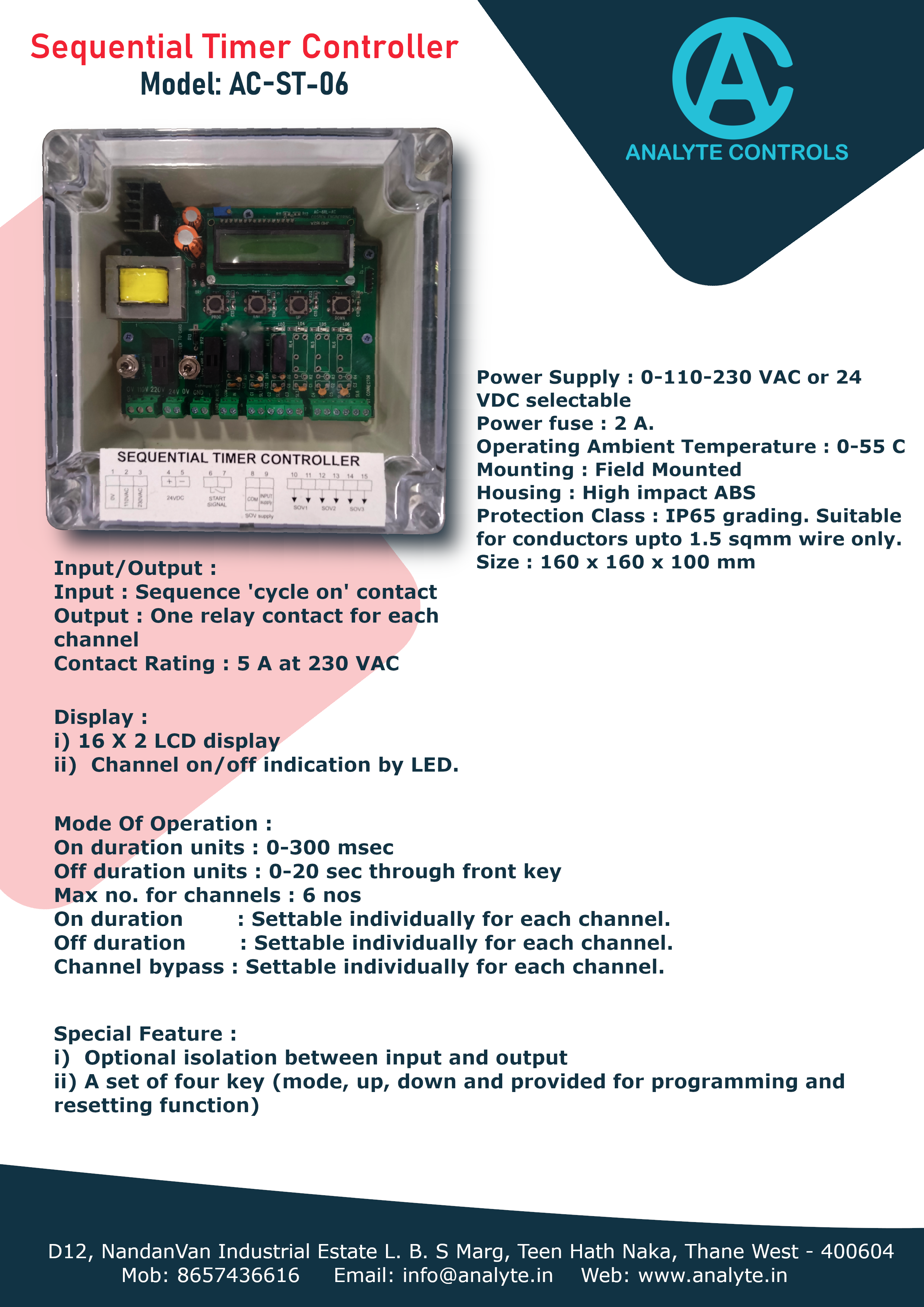

Model: AC-ST-06

Power Supply: 0-110-230 VAC or 24

VDC selectable

Power fuse: 2 A.

Operating Ambient Temperature: 0-55 C

Mounting: Field Mounted

Housing: High-impact ABS

Protection Class: IP65 grading. Suitable for conductors up to 1.5 sqmm wire only.

Size: 160 × 160 × 100 mm

Input/Output:

Input: Sequence 'cycle on' contact

Output: One relay contact for each channel

Contact Rating: 5 A at 230 VAC

Display :

i) 16 X 2 LCD display

ii) Channel on/ off indication by LED.
